Flexible laminated aluminium busbar-RHI Dip Molding,RHI Battery Terminal Connector

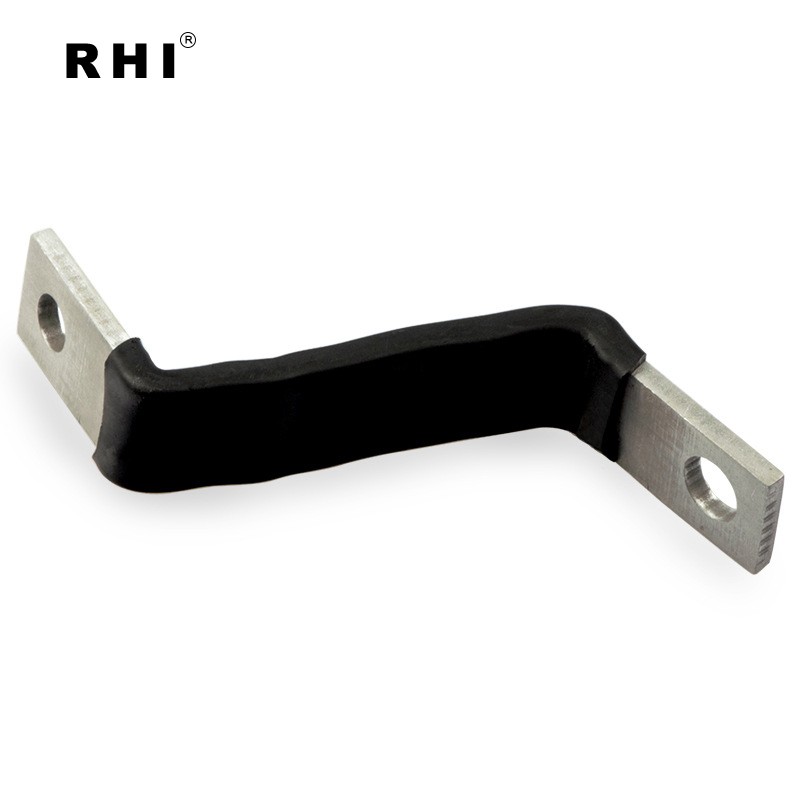

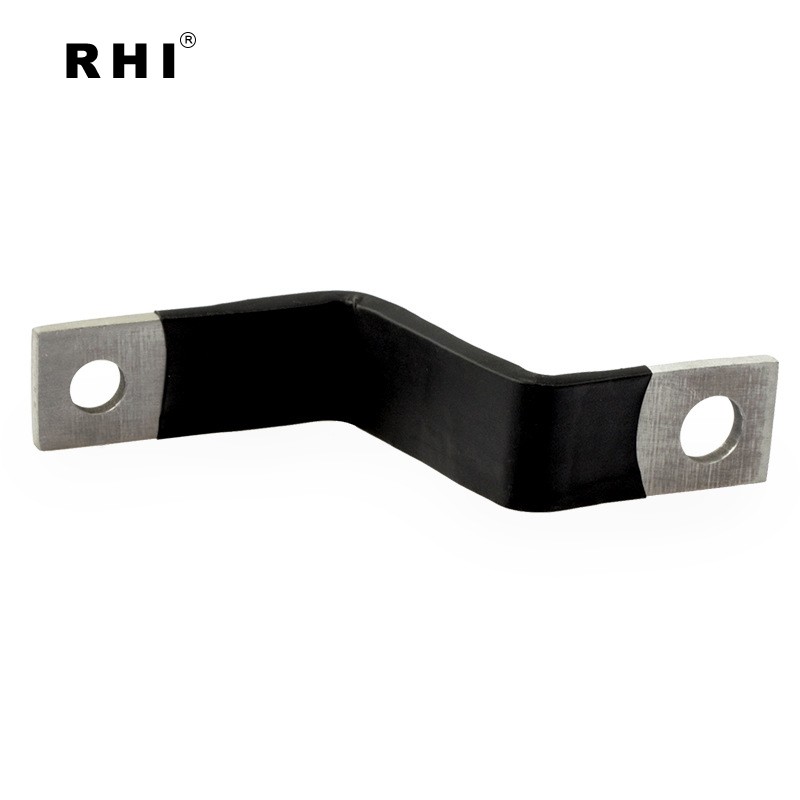

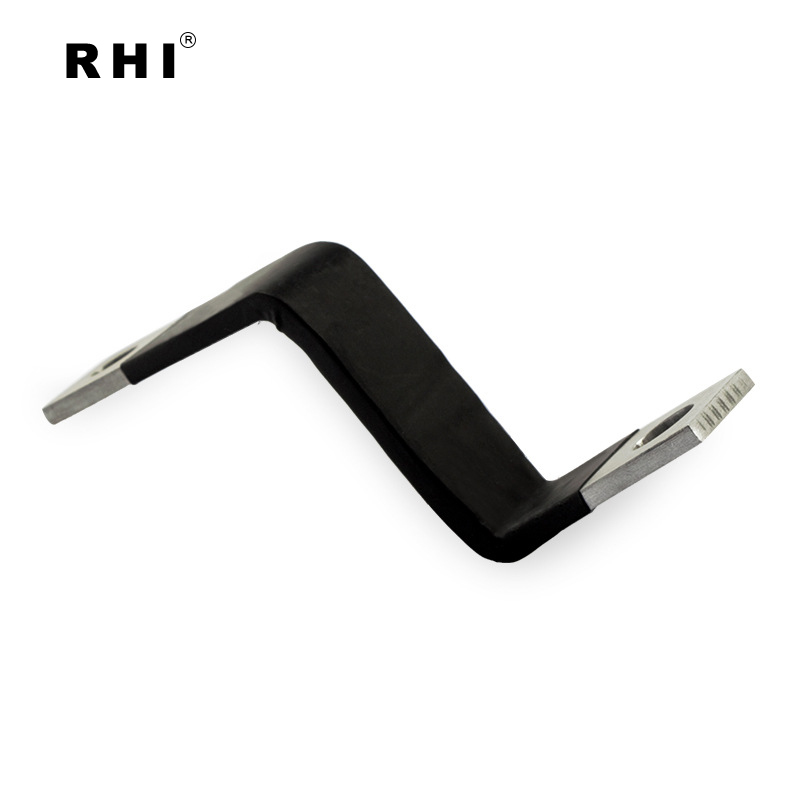

Insulated Flexible Aluminium Busbar are made from O type aluminum foil, widely used for automotive, new energy industry,power equipments, welcome to send us your drawing or requirements, any shape and sizes can be customized by us .aluminium folis from 0.1mm to 0.5mm, customers can be chosen the thickness they want.

Details:

Material: O type, Aluminium foils/sheets

Tensile strength: ≥ 180 MPa

Surface Finish: Nickel or tin plated

Insulation layer: Black heat shrink sleeves or pvc dipping covers

Size: OEM/ODM Service

Test: Conductivity Testing, Temperature Rise Testing, Bending Testing etc

Surface Plating: 3-12um tin, nickel or silver according to busbar's size

Load Voltage: 220 V to 15 KV according to size

Photo Show:

flexible laminated alumninium foil busbar.jpg

Copper Busbar Types and Covers Kits :

Tinned Copper Busbar	Bare Copper Busbar	Flexible Laminated Busbar

Insulated Busbar with Sleeving	Insulated Busbar with Dipping	Insulated Busbar with Coating

This series of pvc busbar insulated covers are suitable for busbar with insulation protection and flame retardancy.

Jointed Type Bus Bar Covers

Single Type Busbar Cover

Buckle Busbar Covers

copper busbar with covers.jpg

Busbar Covers.jpg

busbar cover.jpg

Bus Bar Drawing :

All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2 working days !

Technics Supports & Usage:

Techinics Abilities	Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc
Plating Optional	Nickel Plating Silver Plating Tin Plating
Insulation Type	Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption
Hole Shape	Round Hole, Oval-shaped or Others
Edge Shape	Full Round Edge, Semicircle, Square Corner
Usage	1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc.

Busbar Technics Shows:

Technics Show.jpg

Usage Show:

copper busbar application-2.jpg

Our Advantages:

Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.
